NorTex Glass Works

Commercial Office Building

Storefront glazing and commercial entrances across a two-story brick building.

Full front elevation of the brick commercial office building
MarketCommercial
SystemArcadia Inc. AG451T
GlassVitro Solarban 60 Clear
Project overview

A consistent detail.
Across every elevation.

Repeated glazed openings and commercial entrances bring a consistent rhythm to this two-story brick building. The framing follows the individual masonry openings across the front, covered walkway and side elevations.

Arcadia AG451T framing pairs with Vitro Solarban 60 Clear glass, bringing a cohesive glazing package to the building’s office frontage.

Scope shown

  • Aluminum storefront
  • Commercial entrances
  • Exterior glazing
  • Glazed openings across multiple elevations
Inside the system

The details behind the storefront.

Blueprint-style illustrative studies of storefront framing profiles, glass pockets and gaskets
Illustrative profile studies inspired by the Arcadia AG451T system. Not to scale.
Inside the glass

The layers behind the view.

Exploded blueprint illustration of a one-inch insulated glass unit with quarter-inch outside glass, a half-inch spacer, quarter-inch inside glass, and a Low-E coating on surface two
Illustrative 1″ IGU assembly with a Low-E coating on surface #2. Not to scale.
Around the building

A closer look at the finished work.

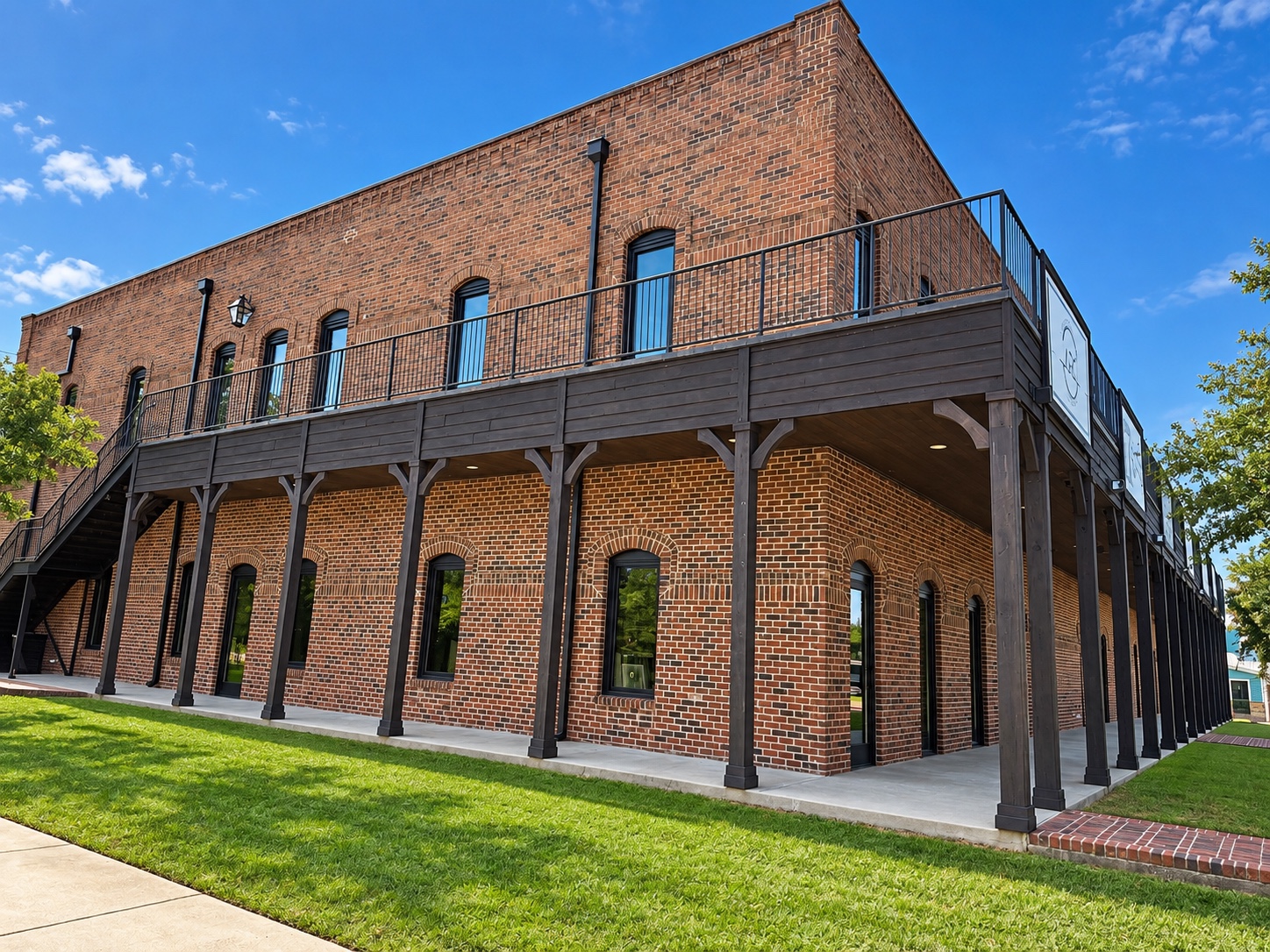

Corner elevation with glazed openings below and above the covered walkway
Storefront glazing along the covered walkway.

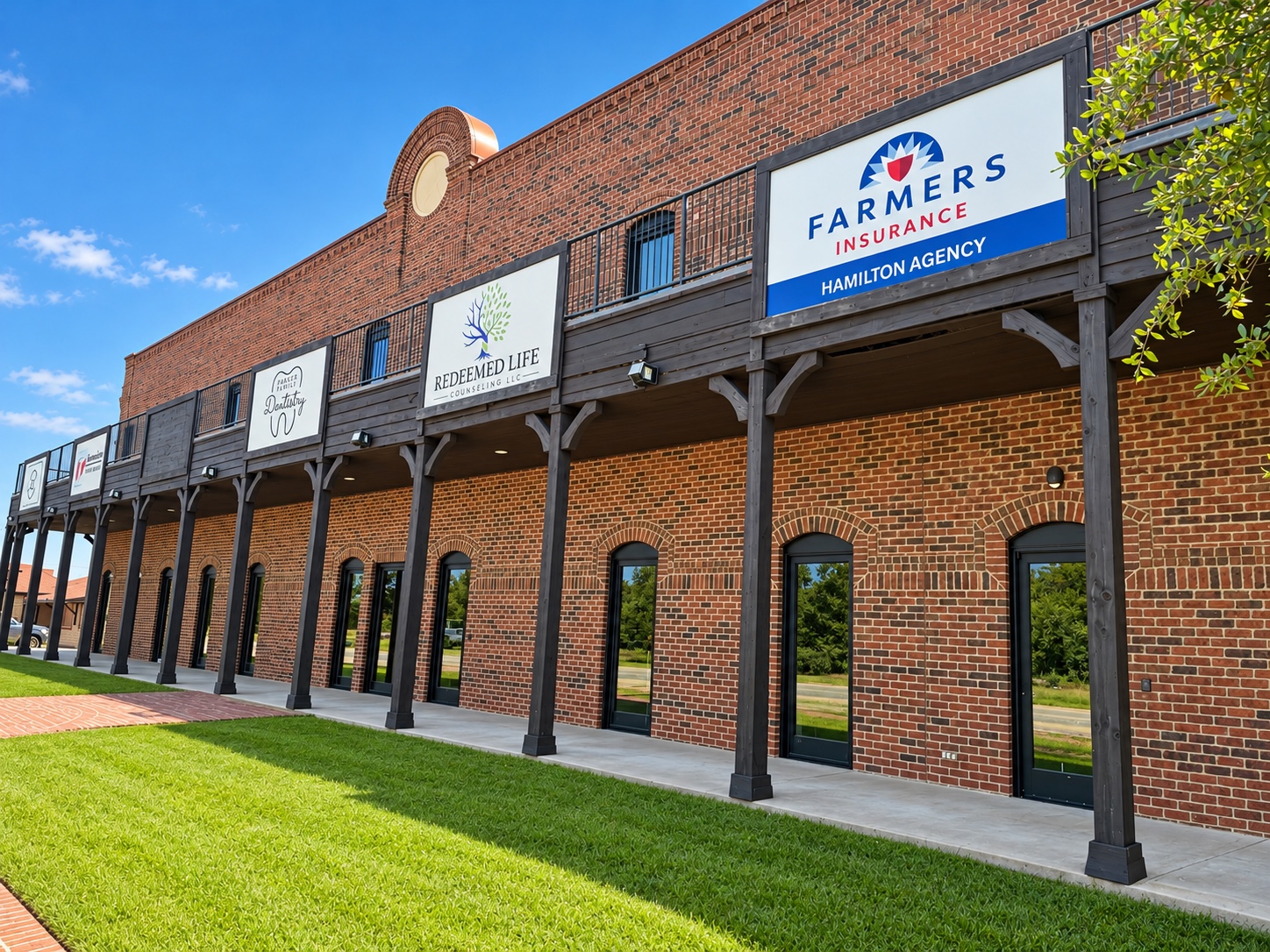

Commercial glass entrances along the brick office frontage
Commercial entrances across the office frontage.

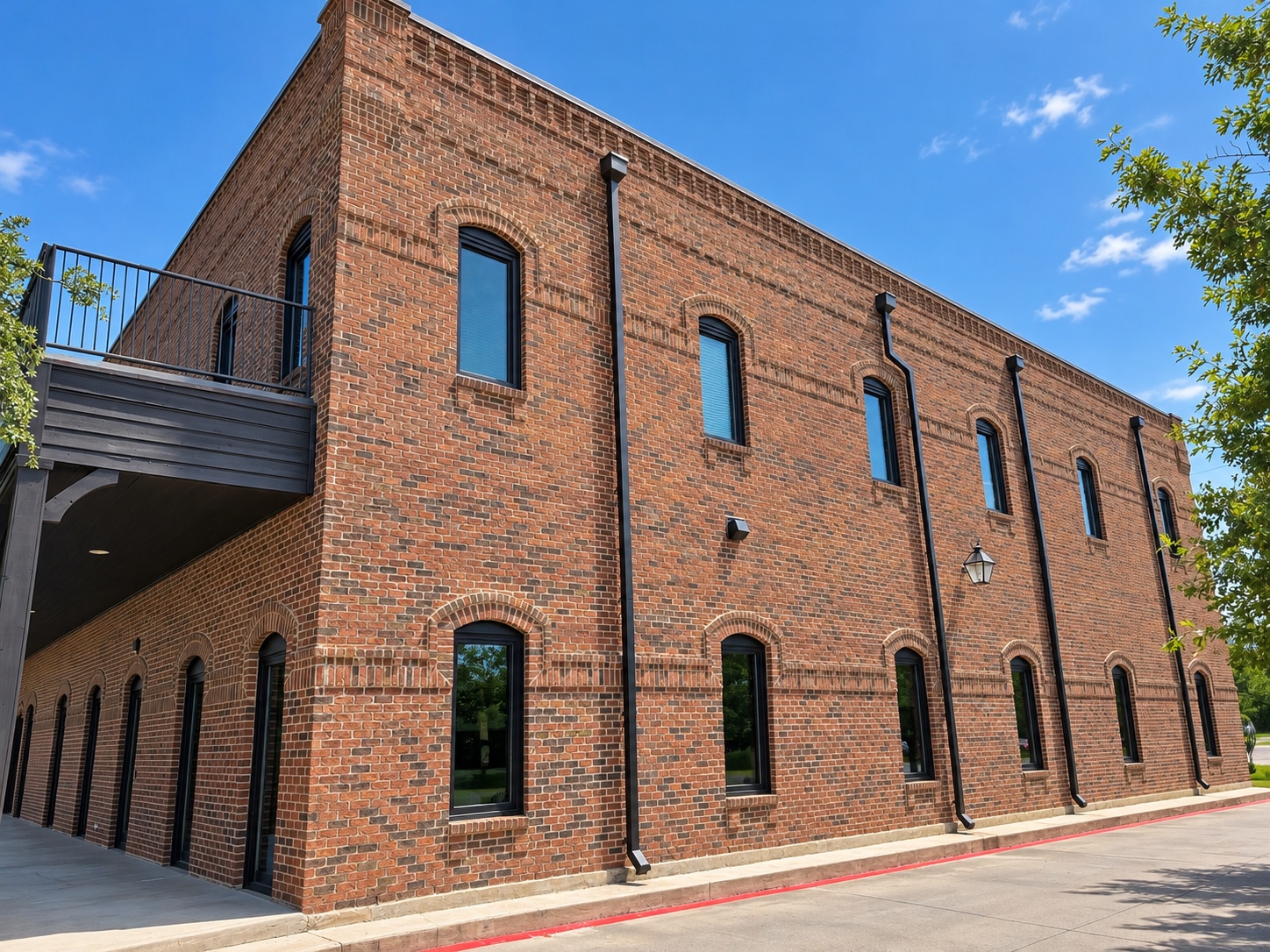

Side elevation showing glazed openings on both floors of the brick commercial building
A consistent framing detail across both floors.
